Stronger security
The door is secured at the top, center and bottom instead of relying on one deadbolt location.
Security, strength and easier operation
3-Point Lock Systems, Handles and Smart-Lock Options
A multipoint lock secures a qualifying exterior wood door at three locations—top, center and bottom—while keeping operation simple.
- Automatic engagement
- No lever lifting required
- Helps improve weather sealing
- Compatible trim and smart-lock choices
Three deadbolts are better than one
Why choose a 3-point lock?
The system increases the number of locking contact points and helps a tall wood door remain secure, aligned and weather-tight.
Automatic operation
The multipoint latches engage as the door closes, without requiring the user to lift the lever.
Better weather seal
Multiple contact points help pull the door evenly against the weatherstripping.
Built for exterior use
Critical areas use stainless steel for improved corrosion resistance and durability.
Keying: The system incorporates a U.S. cylinder with a standard Schlage “C” keyway and is available with compatible trim styles and finishes.
One simple locking motion
How the automatic multipoint system works
- Close the door. Each automatic latch independently engages.
- The latches extend approximately 3/4 inch (20 mm) and become deadbolts.
- Turn the inside thumb turn 90 degrees, or use the key outside, to secure the system.
- The door is held at three locations for security and a more consistent seal.
Main multipoint lock with center deadbolt.
Prepared with your door
What the multipoint lock installation includes
Nick's prepares the qualifying door for the lock system before shipment.
- 3-point lock mortise gear
- Complete door machining, including plunge mortising and drilling

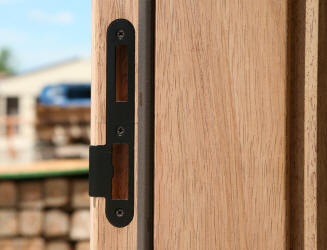

- Lock strikes in dark bronze or satin nickel
- Temporary non-locking construction handle
Finished handles and trim are selected separately.
Confirm before ordering
Door compatibility
The exact lock, trim and machining depend on the complete door configuration.
Door height
Available for many qualifying 6'8" and 8'0" exterior wood doors.
Door thickness
Common configurations include 1-3/4" and 2-1/4" thick doors.
Swing and handing
In-swing, out-swing, left-hand and right-hand details must be confirmed.

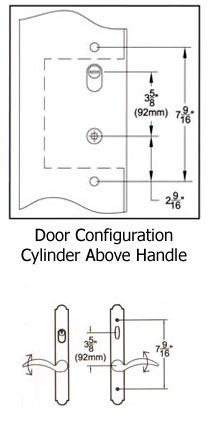

Trim and backset
Backset, cylinder spacing and trim compatibility must match the selected lock.
Not every door qualifies. Call Nick's before ordering replacement hardware or attempting a retrofit.
Choose your exterior style

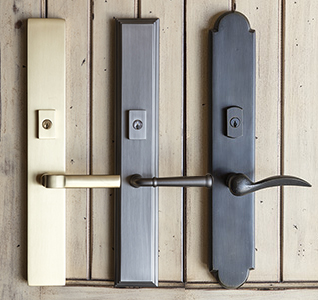

Handlesets, levers and trim
Compare available styles and open any image to view it larger.
Salem Gripset
Oval-style solid-brass handleset in satin nickel.
Sale price: $179 $299
Berkeley Gripset
Square gripset style offered in four finishes.
$359
Berlin by Ferco
Berlin Grip, Berlin Lever and compatible lever configurations, including electronic-access options.
$445 each
Dummy handles and other door-thickness configurations may be available. Non-stock items may cost more.
Optional connected access
Tedee Pro smart lock and accessories
Add smartphone and PIN-code access to a compatible multipoint lock while retaining traditional exterior trim.
Tedee Pro features
- Rechargeable battery-operated smart lock that operates the cylinder/deadbolt
- Available in silver or black
- Bluetooth communication
- Apple Home compatibility
- Google and Alexa integration when used with the Tedee Bridge
- Optional keypad, Wi-Fi bridge and door sensor
A FERCO-compatible lever set is required for Secury Automatic US locks. Confirm exact compatibility before purchase.
Tedee Bluetooth Smart Lock
Rechargeable interior smart lock for compatible lock and trim configurations.
$450
Tedee Keypad
PIN-code access without requiring a phone at the door.
$275
Roma Trim
Traditional exterior trim appearance with compatible smart-lock operation. Confirm current availability and finish options.
Belcanto Trim
Modern lever-and-deadbolt appearance for compatible smart-lock configurations. Confirm current availability.
Installation details
Lock, strike and machining gallery
Open any photo to inspect the hardware and installation details.
See it operate
3-point lock and smart-lock videos
These videos demonstrate lock operation and compatible connected-access hardware.
Common questions
3-point lock FAQ
It is one connected locking mechanism that secures a compatible exterior door at the top, center and bottom.
No. The automatic system shown here engages the latches when the door closes. Turn the thumb turn or key to secure the lock.
No. Door height, thickness, swing, handing, backset and selected trim must all be compatible.
Retrofitting may not be practical or possible. The door and existing machining must be evaluated before replacement hardware is ordered.
Certain compatible configurations can use Tedee smart-lock products. Nick's should confirm the exact lock and lever requirements first.
The multipoint lock, machining, strikes and temporary construction handle are included in the lock installation. Finished handles and trim are selected separately.
Need help matching the lock, trim and door?
Nick's can help confirm door compatibility, handing, thickness, backset, finish and smart-lock options.
